Shapes of molecules and ions

• Electron repulsion theory

  The shape of a molecule is determined by the electron pairs surrounding the central atom. this is only relevant for the outer shell

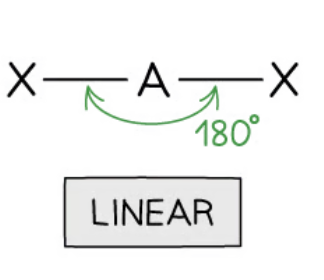

• linear structure


  • two bonding areas and no lone pairs.
  • With the bond angle of 180
  • example - CO2

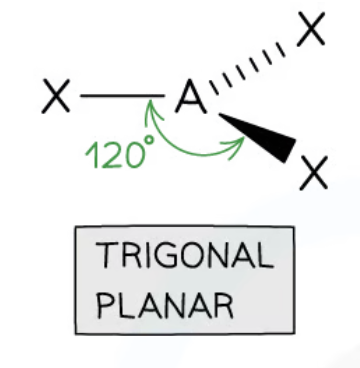

• trigonal planer


  • 3 bonding pairs and no lone electrons
  • bond angle 120
  • BF3

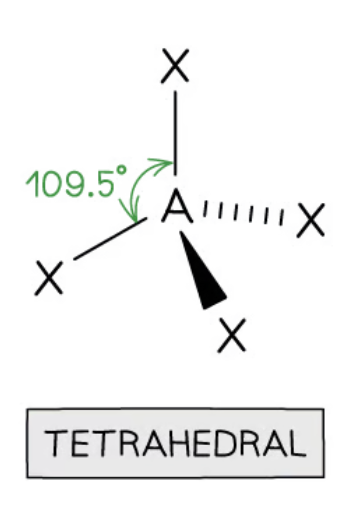

• tetrahedral molecule


  • 4 bonding Pairs and no lone electrons
  • bond angle of 109.5
  • example - methane

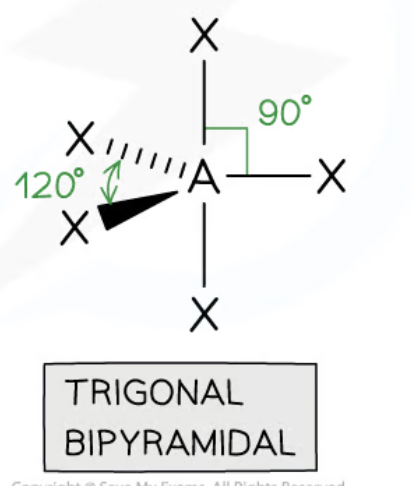

• trigonal bipyramidal


  when there are five bonding pairs to minimise repulsion two of the pairs have to move to opposite sides of the molecule

  • 5 bonding pairs and lone electrons
  • bond angle 90/120
  • example -PF5

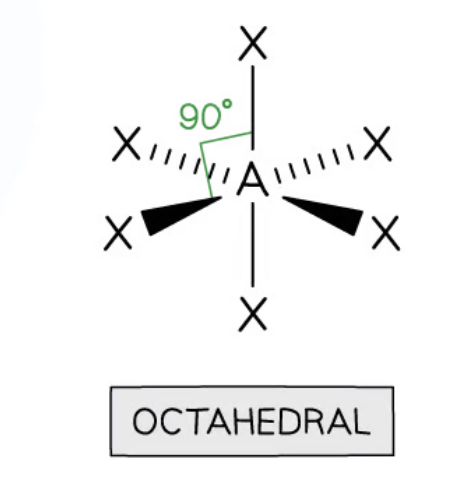

• octahedral


  • 6 bonding pairs and no lone electrons
  • bond angle of 90
  • example - SF6


• What effect do lone pairs have on bond angles compared to bonding pairs?


  Lone pairs repel more strongly than bonding pairs
• How much do lone pairs decrease other bond angles?

  Lone pairs decrease other bond angles by 2.5 degrees
• pyramidal


  • 3 bonding pairs and 1 lone pair
  • bond angle of 107
  • example - NH3
• non linear 1


  • 2 bonding pairs and 1 lone pair
  • bond angle of 117.5
  • 120 - 2.5 =117.5
• non linear 2

  • two bonding pairs and two lone pairs
  • bond angle of 104.5
  • 109.5 - (2x2.5) =104.5
